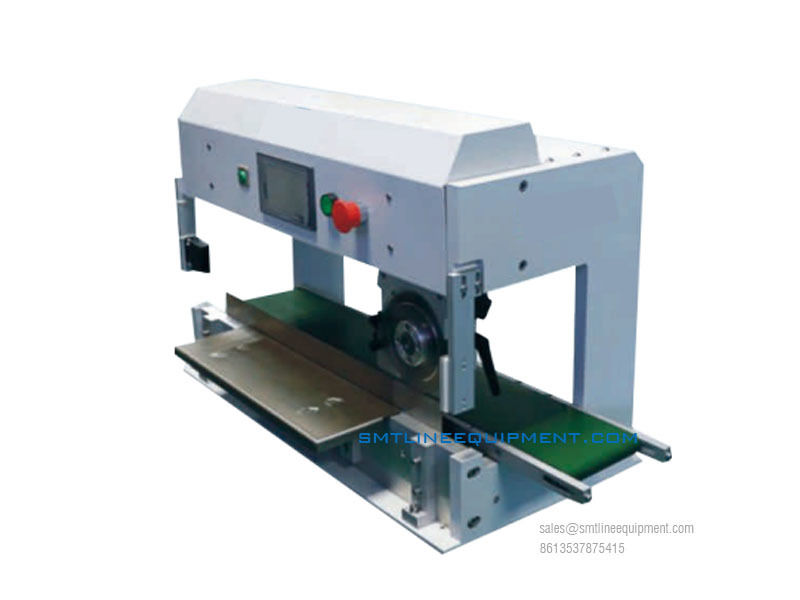

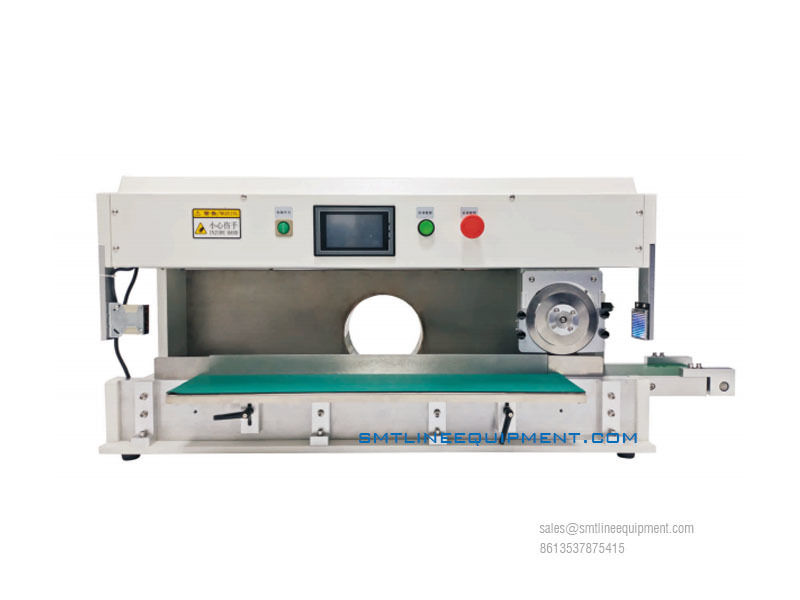

HN-JV2D Electric knife-type V-groove PCB Cutting splitter

HN-JV2D Electric knife-type V-groove PCB Cutting splitter

HNJV2D Electric KnifeType VGroove PCB Cutting Splitter

The HNJV2D is a highprecision, electric knifetype Vgroove PCB cutting machine designed for efficient, safe, and stressfree separation of prescored circuit boards. It is suitable for highvolume SMT production lines and ideal for cutting a wide range of Vgrooved PCBs with adjustable speed and cutting depth settings.

Key Features:

1. Adjustable Circular Blade Travel Speed
The circular upper knife slides smoothly across the PCB along the Vgroove. Its speed can be easily adjusted via a rotary knob to match various PCB materials and production demands.

2. Accurate Blade Gap Adjustment

To accommodate different Vgroove depths and blade wear, the distance between the upper circular blade and lower straight blade can be precisely adjusted. This ensures consistent, clean cutting results while extending blade life.

3. UserFriendly Operation Interface

The cutting speed and stroke are fully adjustable, with settings displayed on an intuitive touchscreen interface. This allows operators to customize the process according to PCB length and layout, enhancing flexibility and control.

4. Optional Conveyor Integration

For increased automation and smoother inline production, the machine can be equipped with an optional conveyor belt, improving efficiency and reducing manual handling.

5. Infrared Safety Sensor Protection

The machine includes a builtin photoelectric (infrared) safety sensor, automatically halting the operation when foreign objects are detected in the cutting area. This provides reliable operator protection and ensures safe production environments.

Benefits:

Lowstress, clean separation of Vgrooved PCBs
Adjustable for various board thicknesses and Vgroove types
Electric drive with consistent performance
Suitable for highspeed inline or offline applications
Designed for precision, safety, and ease of use

The HNJV2D is an ideal solution for electronics manufacturers looking to improve PCB separation quality, operator safety, and production efficiency in one compact, reliable system.

HN-VC2D Desktop Cutting PCB Depaneling Machine  Specification

FAQ GUIDE – HN-JV2D  Desktop Electric knife-type V-groove PCB Cutting seperator

FAQ GUIDE – HNJV2D Desktop Electric KnifeType VGroove PCB Cutting Separator

1. What is the HNJV2D used for?

The HNJV2D is designed for precise, lowstress separation of Vgroove PCBs. It efficiently splits prescored circuit boards with minimal mechanical stress, protecting delicate components and solder joints.

2. How is the cutting speed controlled?

The circular upper blade’s sliding speed is adjustable via a rotary knob, allowing operators to optimize cutting speed based on PCB material and thickness.

3. Can the blade gap be adjusted?

Yes. The distance between the upper circular blade and lower straight blade can be precisely adjusted to accommodate different Vgroove depths and compensate for blade wear, ensuring clean cuts every time.

4. Is there a userfriendly interface?

The machine features a touchscreen display that shows cutting speed and stroke settings, allowing easy and intuitive adjustments for different PCB sizes.

5. Can the machine be integrated with a conveyor?

Yes, an optional conveyor belt can be added to improve automation and throughput for inline production lines.

6. What safety features are included?

The HNJV2D includes a photoelectric (infrared) sensor that detects foreign objects in the cutting area and immediately stops operation to protect operators.

7. What are the power requirements?

It operates on 220V AC power and has a power rating of 500W.

8. What is the maximum PCB size it can handle?

The machine supports PCB lengths of 400mm or 600mm, with custom sizes available upon request.

9. What is the board thickness range?

It can handle PCB thicknesses from 0.5mm to 3.5mm.

10. Is the machine easy to operate?

Yes, it features straightforward controls and an intuitive touchscreen interface designed for quick setup and easy operation on factory floors.

11. Is the machine in stock and available for shipment?

Yes, the HNJV2D is available in stock for fast delivery.
We support global exports and provide comprehensive aftersales service.
